Lithium Polymer (Gamme étendue)
Référence CiblénergieNominal CapacityNominal VoltageMax Discharge CurrentDimensions (mm)ThicknessWeight
MinTypicalVlengthWidthApprox. g

 (mAh) (mAh)   (mA) (±1) (±0.5) (±0.3)
LPC401030
 75 70 3.7 140 30 10 4.0 2
LPC451124
 65 60 3.7 120 24 11 4.5 1.5
LPC531124
 85 80 3.7 160 24 11 5.3 2
LPA551124
 85 80 3.7 160 24 11 5.5 2
LPC301130
 55 50 3.7 100 30 11 3.0 1.5
LPC401130
 85 80 3.7 160 30 11 4.0 2
LPC531130
 120 110 3.7 220 30 11 5.3 2.5
LPC601130
 135 125 3.7 250 30 11 6.0 3
LPA651130
 150 140 3.7 280 30 11 6.5 3.5
LPC531132
 130 120 3.7 240 32 11 5.3 3
LPC401230
 100 90 3.7 180 30 12 4.0 2.5
LPC501230
 120 110 3.7 220 30 12 5.0 3
LPD501230
 130 120 3.7 240 30 12 5.0 3
LPC651230
 170 150 3.7 300 30 12 6.5 3.6
LPC381235
 110 100 3.7 200 35 12 3.8 2.9
LPA401235
 110 100 3.7 200 35 12 4.0 3
LPB401235
 120 110 3.7 220 35 12 4.0 2.5
LPC401235
 130 120 3.7 240 35 12 4.0 3
LPA451235
 120 110 3.7 220 35 12 4.5 3
LPC451235
 140 130 3.7 260 35 12 4.5 3
LPC501235
 150 140 3.7 280 35 12 5.0 3.5
LPD501235
 155 150 3.7 300 35 12 5.0 3.6
LPC551235
 170 160 3.7 320 35 12 5.5 3.8
LPA601235
 160 150 3.7 300 35 12 6.0 3.7
LPC601235
 180 170 3.7 340 35 12 6.0 4
LPC621235
 200 180 3.7 360 35 12 6.2 4.5
LPC701235
 240 220 3.7 440 35 12 7.0 5
LPA401250
 180 170 3.7 340 50 12 4.0 4.5
LPC701250
 350 320 3.7 640 50 12 7.0 7
LPC501322
 90 80 3.7 160 22 13 5.0 2.0
LPC651322
 120 110 3.7 220 22 13 6.5 2.5
LPC751322
 140 130 3.7 260 22 13 7.5 3.0
LPC151413
 3.5 3 3.7 6 13 14 1.5 0.4
LPD401415
 45 40 3.7 80 15 14 4.0 1.3
LPC401422
 82 78 3.7 156 22 14 4.0 2.0
LPC401428
 115 105 3.7 210 28 14 4.0 2.5
LPC151429
 20 18 3.7 36 29 14 1.5 1.2
LPC351429
 105 95 3.7 190 29 14 3.5 2.7
LPB401429
 120 100 3.7 200 29 14 4.0 3
LPC401429
 130 120 3.7 240 29 14 4.0 3
LPB501429
 150 140 3.7 280 29 14 5.0 3.5
LPC501429
 155 145 3.7 290 29 14 5.0 3.5
LPC601429
 190 180 3.7 360 29 14 6.0 4.0
LPC751429
 230 200 3.7 400 29 14 7.5 4.8
LPC801429
 250 230 3.7 460 29 14 8.0 5.0
LPC401438
 160 150 3.7 300 38 14 4.0 3.5
LPC501438
 210 200 3.7 400 38 14 5.0 4.5
LPC501448
 280 260 3.7 520 48 14 5.0 6.0
LPD461515
 65 60 3.7 120 15 15 4.6 1.5
LPD601515
 75 65 3.7 130 15 15 6.0 1.8
LPC451620
 100 90 3.7 180 20 16 4.5 2.5
LPC501622
 100 95 3.7 190 22 16 5.0 2.5
LPC601622
 150 140 3.7 280 22 16 6.0 3
LPC631622
 145 135 3.7 270 22 16 6.3 3.2
LPB801622
 200 180 3.7 360 22 16 8.0 4
LPC381630
 130 120 3.7 240 30 16 3.8 3.1
LPB391630
 140 130 3.7 260 30 16 3.9 3.5
LPC401630
 140 130 3.7 260 30 16 4.0 3.5
LPB451630
 170 160 3.7 320 30 16 4.5 4.0
LPA501630
 170 160 3.7 320 30 16 5.0 4
LPC601630
 220 200 3.7 400 30 16 6.0 4.5
LPC501636
 220 200 3.7 400 36 16 5.0 4.5
LPD501630
 210 200 3.7 400 36 16 5.0 4.5
LPD551630
 220 210 3.7 420 36 16 5.5 4.5
LPC601636
 330 280 3.7 560 36 16 6.0 6.5
LPC471647
 290 270 3.7 540 47 16 4.7 6
LPC501647
 290 270 3.7 540 47 16 5.0 6.0
LPC651647
 420 400 3.7 800 47 16 6.5 8.5
LPC601653
 440 420 3.7 840 53 16 6.0 9
LPA501697
 700 650 3.7 1300 97 16 5.0 14
LPC301730
 100 90 3.7 180 30 17 3.0 2.5
LPA361730
 120 110 3.7 220 30 17 3.6 3.1
LPC361730
 125 115 3.7 230 30 17 3.6 3
LPA401730
 135 120 3.7 240 30 17 4.0 3.5
LPC401730
 150 140 3.7 280 30 17 4.0 3.5
LPC451730
 190 180 3.7 360 30 17 4.5 4
LPC501730
 200 190 3.7 380 30 17 5.0 4.3
LPC551730
 220 200 3.7 400 30 17 5.5 5
LPD601730
 260 250 3.7 500 30 17 6.0 5
LPA651730
 230 220 3.7 440 30 17 6.5 5
LPC651730
 260 240 3.7 480 30 17 6.5 5.3
LPB401734
 170 160 3.7 320 34 17 4.0 4
LPC451734
 210 200 3.7 400 34 17 4.5 4.5
LPC401736
 190 180 3.7 360 36 17 4.0 4.5
LPB601736
 320 300 3.7 600 36 17 6.0 6.5
LPC351745
 200 190 3.7 380 45 17 3.5 4.5
LPC401745
 250 230 3.7 460 45 17 4.0 6
LPB501745
 320 300 3.7 600 45 17 5.0 7
LPB601745
 400 380 3.7 760 45 17 6.0 8
LPC581753
 470 450 3.7 900 53 17 5.8 9.5
LPC601753
 480 450 3.7 900 53 17 6.0 10
LPA301822
 65 60 3.7 120 22 18 3.0 1.9
LPC301822
 70 65 3.7 130 22 18 3.0 2.0
LPB401834
 180 170 3.7 340 34 18 4.0 4
LPB401834
 180 170 3.7 340 34 18 4.0 4
LPC451834
 235 230 3.7 460 34 18 4.5 5
LPC401840
 240 230 3.7 460 40 18 4.0 5.5
LPC401845
 270 250 3.7 500 45 18 4.0 6.0
LPB461845
 290 280 3.7 560 45 18 4.6 6.5
LPB601845
 400 380 3.7 760 45 18 6.0 8.5
LPC621845
 450 420 3.7 840 45 18 6.2 9.0
LPC481922
 135 125 3.7 250 22 19 4.8 3.0
LPC701922
 210 200 3.7 400 22 19 7.0 4.5
LPC601930
 290 270 3.7 540 30 19 6.0 6.0
LPC561947
 460 440 3.7 880 47 19 5.6 9.0
LPB521948
 420 400 3.7 800 48 19 5.2 8.6
LPB601948
 450 400 3.7 800 48 19 6.0 9.3
LPC302016
 35 30 3.7 60 16 20 3.0 1.3
LPC502016
 80 70 3.7 140 16 20 5.0 2
LPC602016
 100 90 3.7 180 16 20 6.0 2.5
LPC622019
 160 150 3.7 300 19 20 6.2 3.5
LPC302024
 105 100 3.7 200 24 20 3.0 2.5
LPC382024
 130 120 3.7 240 24 20 3.8 3.0
LPC452024
 150 140 3.7 280 24 20 4.5 3.5
LPC602024
 210 200 3.7 400 24 20 6.0 4.5
LPC382025
 130 120 3.7 240 25 20 3.8 3
LPC402025
 140 130 3.7 260 25 20 4.0 3
LPD402025
 165 155 3.7 310 25 20 4.0 3.2
LPB452025
 140 130 3.7 260 25 20 4.5 3.5
LPC452025
 160 150 3.7 300 25 20 4.5 3.5
LPC502025
 190 180 3.7 360 25 20 5.0 4.2
LPA532025
 190 180 3.7 360 25 20 5.3 4.4
LPC602028
 280 260 3.7 520 28 20 6.0 5.6
LPC242030
 100 90 3.7 180 30 20 2.4 2.8
LPC302030
 130 120 3.7 240 30 20 3.0 3.0
LPA352030
 140 130 3.7 260 30 20 3.5 3.5
LPC352030
 160 150 3.7 300 30 20 3.5 3.8
LPC382030
 170 160 3.7 320 30 20 3.8 4.5
LPA402030
 170 150 3.7 300 30 20 4.0 4.2
LPA402030
 170 150 3.7 300 30 20 4.0 4.2
LPC402030
 190 180 3.7 360 30 20 4.0 4.5
LPC452030
 220 210 3.7 420 30 20 4.5 5.0
LPC502030
 250 230 3.7 460 30 20 5.0 5.5
LPD502030
 270 250 3.7 500 30 20 5.0 5.4
LPC552030
 270 260 3.7 520 30 20 5.5 6
LPC582030
 290 270 3.7 540 30 20 5.8 6
LPA602030
 260 250 3.7 500 30 20 6.0 5.5
LPC652030
 320 300 3.7 600 30 20 6.5 6.5
LPC702030
 350 330 3.7 660 30 20 7.0 7
LPC402035
 220 200 3.7 400 35 20 4.0 5.0
LPC502035
 290 280 3.7 560 35 20 5.0 6
LPC552035
 340 320 3.7 640 35 20 5.5 7.0
LPC602035
 370 350 3.7 700 35 20 6.0 7.5
LPC702035
 420 400 3.7 800 35 20 7.0 8.5
LPA222036
 80 70 3.7 140 36 20 2.2 2
LPC222036
 95 85 3.7 170 36 20 2.2 2.5
LPA352036
 150 130 3.7 260 36 20 3.5 4
LPC352036
 180 170 3.7 340 36 20 3.5 4.5
LPA382036
 180 170 3.7 340 36 20 3.8 5
LPA402036
 220 200 3.7 400 36 20 4.0 5.3
LPA452036
 220 200 3.7 400 36 20 4.5 5.5
LPA452036
 220 200 3.7 400 36 20 4.5 5.5
LPC452036
 250 240 3.7 480 36 20 4.5 5.5
LPC502036
 310 290 3.7 580 36 20 5.0 6.5
LPC532036
 340 320 3.7 640 36 20 5.3 7
LPC552036
 350 300 3.7 600 36 20 5.5 7
LPD552036
 360 340 3.7 680 36 20 5.5 7.0
LPC802036
 500 480 3.7 960 36 20 8.0 9.5
LPC102040
 32 30 3.7 60 40 20 1.0 1.6
LPC402040
 270 250 3.7 500 40 20 4.0 6.0
LPC502040
 340 320 3.7 640 40 20 5.0 7.0
LPC602040
 450 430 3.7 860 40 20 6.0 9
LPC852040
 620 580 3.7 1160 40 20 8.5 12
LPC402048
 340 320 3.7 640 48 20 4.0 7.0
LPC382050
 320 300 3.7 600 50 20 3.8 7.5
LPC452050
 400 380 3.7 760 50 20 4.5 8.0
LPA402055
 390 360 3.7 720 55 20 4.0 8.6
LPA402060
 400 380 3.7 760 60 20 4.0 9
LPB402060
 440 420 3.7 840 60 20 4.0 9.0
LPC402060
 450 430 3.7 860 60 20 4.0 9.5
LPC502060
 560 530 3.7 1060 60 20 5.0 11
LPC2820120
 560 530 3.7 1060 120 20 2.8 13
LPC352131
 180 170 3.7 340 31 21 3.5 4
LPC552142
 430 400 3.7 800 42 21 5.5 9
LPC642142
 530 500 3.7 1000 42 21 6.4 10.5
LPB302225
 110 100 3.7 200 25 22 3.0 2.8
LPA402225
 150 140 3.7 280 25 22 4.0 3.5
LPA602225
 210 190 3.7 380 25 22 6.0 4.8
LPD682229
 400 380 3.7 760 29 22 6.8 7.5
LPC202235
 100 95 3.7 190 35 22 2.0 2.8
LPC452235
 280 260 3.7 520 35 22 4.5 6.0
LPC582235
 400 370 3.7 740 35 22 5.8 8.0
LPC502240
 400 370 3.7 740 40 22 5.0 8.0
LPC1052245
 1000 950 3.7 1900 45 22 10.5 19.0
LPC402245
 330 300 3.7 600 45 22 4.0 6
LPC582245
 560 530 3.7 1060 45 22 5.8 11
LPD822245
 800 750 3.7 1500 45 22 8.2 15.5
LPC952245
 900 850 3.7 1700 45 22 9.5 17.5
LPA222248
 130 120 3.7 240 48 22 2.2 4
LPC302248
 240 220 3.7 440 48 22 3.0 5.5
LPC402248
 380 360 3.7 720 48 22 4.0 8.0
LPA452248
 330 300 3.7 600 48 22 4.5 7.5
LPC452248
 420 400 3.7 800 48 22 4.5 8.4
LPC502248
 480 450 3.7 900 48 22 5.0 9.5
LPC552248
 550 520 3.7 1040 48 22 5.5 11
LPB602248
 600 550 3.7 1100 48 22 6.0 12
LPC602248
 600 550 3.7 1100 48 22 6.0 12.5
LPC652248
 660 630 3.7 1260 48 22 6.5 13
LPC502253
 560 530 3.7 1060 53 22 5.0 11.5
LPC502331
 280 260 3.7 520 31 23 5.0 5.5
LPC602331
 370 350 3.7 700 31 23 6.0 7.5
LPC342338
 240 220 3.7 440 38 23 3.4 5.5
LPC382338
 280 260 3.7 520 38 23 3.8 6
LPC442426
 210 200 3.7 400 26 24 4.4 4.5
LPB322431
 170 160 3.7 320 31 24 3.2 4
LPC352431
 210 200 3.7 400 31 24 3.5 4.7
LPC382431
 230 210 3.7 420 31 24 3.8 5.0
LPC402431
 230 220 3.7 440 31 24 4.0 5
LPC642431
 420 400 3.7 800 31 24 6.4 8
LPC352438
 260 240 3.7 480 38 24 3.5 5.9
LPC502438
 420 400 3.7 800 38 24 5.0 8.5
LPB562438
 500 450 3.7 900 38 24 5.6 9.5
LPC652438
 540 500 3.7 1000 38 24 6.5 10.5
LPC752438
 600 580 3.7 1160 38 24 7.5 11.5
LPC402445
 400 380 3.7 760 45 24 4.0 7.5
LPC552445
 560 530 3.7 1060 45 24 5.5 11
LPC302447
 270 250 3.7 500 47 24 3.0 6.5
LPC372447
 400 380 3.7 760 47 24 3.7 8.5
LPA562447
 550 500 3.7 1000 47 24 5.6 11.7
LPC562447
 600 550 3.7 1100 47 24 5.6 11.5
LPC502448
 550 520 3.7 1040 48 24 5.0 11
LPA852448
 850 830 3.7 1660 48 24 8.5 17
LPB852448
 880 830 3.7 1660 48 24 8.5 18
LPC352460
 440 410 3.7 820 60 24 3.5 9.5
LPC402460
 550 520 3.7 1040 60 24 4.0 11.9
LPC502460
 720 670 3.7 1340 60 24 5.0 14.5
LPC602460
 880 830 3.7 1660 60 24 6.0 17.0
LPC402535
 280 260 3.7 520 35 25 4.0 6.0
LPC552535
 430 400 3.7 800 35 25 5.5 8.5
LPC502540
 450 420 3.7 840 40 25 5.0 9.5
LPC552540
 500 460 3.7 920 40 25 5.5 10.0
LPD402543
 400 380 3.7 760 43 25 4.0 7.8
LPC432543
 450 420 3.7 840 43 25 4.3 9.5
LPC452543
 470 450 3.7 900 43 25 4.5 9.5
LPC652543
 650 620 3.7 1240 43 25 6.5 12.5
LPC372548
 420 400 3.7 800 48 25 3.7 9.0
LPC602548
 700 650 3.7 1300 48 25 6.0 13.5
LPC502630
 330 300 3.7 600 30 26 5.0 7
LPC632642
 680 630 3.7 1260 42 26 6.3 13.0
LPC552647
 650 600 3.7 1200 47 26 5.5 12.5
LPC402648
 450 420 3.7 840 48 26 4.0 9
LPB502648
 580 550 3.7 1100 48 26 5.0 11
LPC552648
 650 600 3.7 1200 48 26 5.5 12.5
LPC382654
 460 440 3.7 880 54 26 3.8 9.5
LPB332726
 150 140 3.7 280 26 27 3.3 3.8
LPB362726
 170 160 3.7 320 26 27 3.6 4.2
LPB422726
 240 220 3.7 440 26 27 4.2 5
LPC422726
 250 230 3.7 460 26 27 4.2 5.0
LPC702726
 400 380 3.7 760 26 27 7.0 8
LPC302730
 180 170 3.7 340 30 27 3.0 4.0
LPC422730
 280 260 3.7 520 30 27 4.2 6.0
LPC452730
 300 280 3.7 560 30 27 4.5 6.5
LPC542730
 380 350 3.7 700 30 27 5.4 7.5
LPC602730
 420 400 3.7 800 30 27 6.0 8.5
LPA652730
 420 400 3.7 800 30 27 6.5 8.5
LPC652730
 450 430 3.7 860 30 27 6.5 8.5
LPC802730
 600 560 3.7 1120 30 27 8.0 11
LPC502740
 480 450 3.7 900 40 27 5.0 9.5
LPC552740
 560 530 3.7 1060 40 27 5.5 11
LPC582740
 580 550 3.7 1100 40 27 5.8 11.5
LPC502741
 500 460 3.7 920 41 27 5.0 10
LPC552741
 580 550 3.7 1100 41 27 5.5 11.5
LPC452750
 600 550 3.7 1100 50 27 4.5 12
LPC402754
 560 530 3.7 1060 54 27 4.0 11.5
LPC602790
 1450 1350 3.7 2700 90 27 6.0 27.5
LPC702842
 780 750 3.7 1500 42 28 7.0 15
LPC502843
 600 550 3.7 1100 43 28 5.0 11.5
LPC702843
 780 750 3.7 1500 43 28 7.0 15.0
LPC882880
 2050 1950 3.7 3900 80 28 8.8 38
LPC882890
 2500 2400 3.7 4800 90 28 8.8 44.5
LPC882930
 680 650 3.7 1300 30 29 8.8 13.0
LPC292933
 240 220 3.7 440 33 29 2.9 5.0
LPC402933
 330 300 3.7 600 33 29 4.0 7.2
LPC602940
 660 620 3.7 1240 40 29 6.0 12.5
LPC882940
 1000 950 3.7 1900 40 29 8.8 19.5
LPC1102945
 1400 1300 3.7 2600 45 29 11 25.5
LPC372945
 420 380 3.7 760 45 29 3.7 8.5
LPC422945
 500 480 3.7 960 45 29 4.2 10.5
LPB502945
 630 600 3.7 1200 45 29 5.0 12
LPC502945
 650 600 3.7 1200 45 29 5.0 13.0
LPC602945
 800 750 3.7 1500 45 29 6.0 15.5
LPC452948
 600 570 3.7 1140 48 29 4.5 12.5
LPA482948
 620 600 3.7 1200 48 29 4.8 13.2
LPC722948
 1000 950 3.7 1900 48 29 7.2 19
LPD403026
 260 240 3.7 480 26 30 4.0 5.3
LPC453026
 280 260 3.7 520 26 30 4.5 5.8
LPC603026
 420 400 3.7 800 26 30 6.0 8
LPC803026
 500 450 3.7 900 26 30 8.0 10
LPD503030
 450 420 3.7 840 30 30 5.0 9
LPC803034
 750 700 3.7 1400 34 30 8.0 14.5
LPC883038
 950 900 3.7 1800 38 30 8.8 18.0
LPC263040
 220 200 3.7 400 40 30 2.6 5.5
LPC403040
 450 400 3.7 800 40 30 4.0 9.5
LPC503040
 560 530 3.7 1060 40 30 5.0 11
LPC523040
 580 550 3.7 1100 40 30 5.2 12
LPC603040
 680 650 3.7 1300 40 30 6.0 14
LPD433041
 560 530 3.7 1060 41 30 4.3 10.5
LPA503042
 550 500 3.7 1000 42 30 5.0 11.6
LPC503042
 600 570 3.7 1140 42 30 5.0 12
LPC653042
 820 750 3.7 1500 42 30 6.5 15.5
LPA833042
 850 800 3.7 1600 42 30 8.3 18.5
LPC453043
 550 530 3.7 1060 43 30 4.5 11
LPD453043
 560 530 3.7 1060 43 30 4.5 11.5
LPC403048
 560 530 3.7 1060 48 30 4.0 11.5
LPA423048
 580 530 3.7 1060 48 30 4.2 11.5
LPC423048
 600 580 3.7 1160 48 30 4.2 12.5
LPD453048
 710 660 3.7 1320 48 30 4.5 13
LPC453048
 630 600 3.7 1200 48 30 4.5 12.9
LPA483048
 650 600 3.7 1200 48 30 4.8 13
LPC503048
 700 650 3.7 1300 48 30 5.0 14
LPB523048
 750 700 3.7 1400 48 30 5.2 14.5
LPC603048
 900 850 3.7 1700 48 30 6.0 18
LPB623048
 900 850 3.7 1700 48 30 6.2 17
LPC683048
 1050 1000 3.7 2000 48 30 6.8 18.5
LPD683048
 1120 1050 3.7 2100 48 30 6.8 19
LPC703048
 1000 950 3.7 1900 48 30 7.0 19.5
LPD723048
 1100 1000 3.7 2000 48 30 7.2 20
LPC803048
 1050 1000 3.7 2000 48 30 8.0 20
LPC883048
 1300 1200 3.7 2400 48 30 8.8 24
LPC423050
 600 570 3.7 1140 50 30 4.2 12.2
LPC433050
 650 600 3.7 1200 50 30 4.3 13.5
LPB423058
 750 700 3.7 1400 58 30 4.2 15
LPC523058
 920 880 3.7 1760 58 30 5.2 17.5
LPC853062
 1550 1450 3.7 2900 58 30 8.5 30
LPC503090
 1400 1300 3.7 2600 90 30 5.0 28
LPC883090
 2500 2400 3.7 4800 90 30 8.8 48.5
LPC573136
 580 550 3.7 1100 36 31 5.7 12
LPC683162
 1380 1300 3.7 2600 62 31 6.8 26
LPC323236
 300 280 3.7 560 36 32 3.2 7.5
LPA453236
 420 380 3.7 760 36 32 4.5 9.3
LPC453236
 480 460 3.7 920 36 32 4.5 10
LPC303248
 400 380 3.7 760 48 32 3.0 8.5
LPC383248
 550 520 3.7 1040 48 32 3.8 11.5
LPC633248
 950 900 3.7 1800 48 32 6.3 18.2
LPA723248
 1050 950 3.7 1900 48 32 7.2 21
LPC723248
 1150 1050 3.7 2100 48 32 7.2 21.5
LPC403250
 630 600 3.7 1200 50 32 4.0 12.5
LPB423250
 700 650 3.7 1300 50 32 4.2 14
LPC453250
 720 680 3.7 1360 50 32 4.5 14.5
LPC503250
 870 820 3.7 1640 50 32 5.0 16.5
LPD523250
 930 880 3.7 1760 50 32 5.2 16.5
LPC523250
 900 840 3.7 1680 50 32 5.2 17.5
LPD553250
 1000 950 3.7 1900 50 32 5.5 18.5
LPC603250
 950 900 3.7 1800 50 32 6.0 18.5
LPC723250
 1250 1200 3.7 2400 50 32 7.2 24
LPC853250
 1400 1300 3.7 2600 50 32 8.5 26.5
LPB543257
 950 900 3.7 1800 57 32 5.4 19.3
LPC543257
 1000 950 3.7 1900 57 32 5.4 19
LPC853259
 1750 1650 3.7 3300 59 32 8.5 32.5
LPC603262
 1250 1150 3.7 2300 62 32 6.0 25
LPC443340
 550 500 3.7 1000 40 33 4.4 10.5
LPC433343
 580 550 3.7 1100 43 33 4.3 11.5
LPA803343
 1100 1050 3.7 2100 43 33 8.0 21.5
LPC573362
 1200 1150 3.7 2300 62 33 5.7 22.5
LPB503434
 500 480 3.7 960 34 34 5.0 10.5
LPB603434
 580 530 3.7 1060 34 34 6.0 12.5
LPC603434
 630 600 3.7 1200 34 34 6.0 12
LPC803434
 880 830 3.7 1660 34 34 8.0 17
LPB323436
 320 300 3.7 600 36 34 3.2 7.4
LPC323436
 320 300 3.7 600 36 34 3.2 7.4
LPC463436
 510 480 3.7 960 36 34 4.6 11
LPC483436
 560 530 3.7 1060 36 34 4.8 11.5
LPA483436
 460 440 3.7 880 36 34 4.8 10
LPC503436
 560 530 3.7 1060 36 34 5.0 11
LPA553436
 580 550 3.7 1100 36 34 5.5 11
LPC553436
 630 600 3.7 1200 36 34 5.5 12.5
LPC583436
 660 630 3.7 1260 36 34 5.8 12.5
LPC603436
 700 650 3.7 1300 36 34 6.0 12.5
LPD843436
 1100 1050 3.7 2100 36 34 8.4 20
LPC403440
 500 480 3.7 960 40 34 4.0 10.5
LPC503440
 650 600 3.7 1200 40 34 5.0 13
LPD503440
 720 680 3.7 1360 40 34 5.0 13
LPC553440
 700 650 3.7 1300 40 34 5.5 14.5
LPC583440
 750 700 3.7 1400 40 34 5.8 14.5
LPC603440
 780 730 3.7 1460 40 34 6.0 15
LPC683440
 900 850 3.7 1700 40 34 6.8 17.5
LPB753440
 1000 900 3.7 1800 40 34 7.5 19.5
LPC753443
 1050 1000 3.7 2000 43 34 7.5 20.5
LPC403445
 580 550 3.7 1100 45 34 4.0 11.5
LPC503445
 750 700 3.7 1400 45 34 5.0 14.5
LPC533445
 800 750 3.7 1500 45 34 5.3 15.5
LPD513446
 900 820 3.7 1640 46 34 5.1 16
LPC403448
 620 580 3.7 1160 48 34 4.0 12.5
LPC423448
 660 630 3.7 1260 48 34 4.2 13.5
LPD503448
 850 800 3.7 1600 48 34 5.0 16
LPB523448
 880 830 3.7 1660 48 34 5.2 17.5
LPC603448
 1000 950 3.7 1900 48 34 6.0 19
LPC663448
 1050 1000 3.7 2000 48 34 6.6 21.5
LPA703448
 1050 1000 3.7 2000 48 34 7.0 20.0
LPC703448
 1150 1050 3.7 2100 48 34 7.0 22.5
LPB753448
 1150 1050 3.7 2100 48 34 7.5 23
LPC753448
 1250 1150 3.7 2300 48 34 7.5 24.3
LPA803448
 1200 1050 3.7 2100 48 34 8.0 25.5
LPC803448
 1350 1250 3.7 2500 48 34 8.0 25.5
LPC953448
 1500 1400 3.7 2800 48 34 9.5 28.5
LPC503449
 900 870 3.7 1740 49 34 5 17.5
LPC383449
 680 630 3.7 1260 49 34 3.8 13.5
LPC603449
 1050 1000 3.7 2000 49 34 6.0 20
LPD603449
 1100 1050 3.7 2100 49 34 6.0 21
LPC303450
 450 420 3.7 840 50 34 3.0 10.4
LPC323450
 580 560 3.7 1120 50 34 3.2 11.5
LPC343450
 580 550 3.7 1100 50 34 3.4 12
LPC363450
 620 580 3.7 1160 50 34 3.6 13.2
LPA383450
 650 600 3.7 1200 50 34 3.8 12.5
LPB383450
 670 620 3.7 1240 50 34 3.8 13.5
LPC383450
 720 680 3.7 1360 50 34 3.8 13.5
LPD383450
 800 750 3.7 1500 50 34 3.8 15
LPC423450
 730 700 3.7 1400 50 34 4.2 14.5
LPC443450
 800 750 3.7 1500 50 34 4.4 15.5
LPC453450
 800 750 3.7 1500 50 34 4.5 16
LPC483450
 850 800 3.7 1600 50 34 4.8 16.5
LPC523450
 900 850 3.7 1700 50 34 5.2 17.5
LPC543450
 1000 950 3.7 1900 50 34 5.4 19
LPC553450
 1000 950 3.7 1900 50 34 5.5 19
LPB623450
 1050 1000 3.7 2000 50 34 6.2 20
LPC703450
 1250 1150 3.7 2300 50 34 7.0 23.5
LPC803450
 1400 1300 3.7 2600 50 34 8.0 26
LPC903450
 1550 1450 3.7 2900 50 34 9.0 30
LPC953450
 1700 1600 3.7 3200 50 34 9.5 31.5
LPC963450
 1800 1700 3.7 3400 50 34 9.6 32
LPC653452
 1150 1100 3.7 2200 52 34 6.5 21
LPC1003454
 2000 1900 3.7 3800 54 34 10.0 36
LPC243454
 350 330 3.7 660 54 34 2.4 8.0
LPB343454
 570 500 3.7 1000 54 34 3.4 13
LPC363454
 640 600 3.7 1200 54 34 3.6 13
LPC383454
 750 700 3.7 1400 54 34 3.8 14.5
LPB423454
 770 720 3.7 1440 54 34 4.2 15
LPB523454
 900 850 3.7 1700 54 34 5.2 18
LPC553454
 1000 950 3.7 1900 54 34 5.5 19.5
LPC583454
 1050 1000 3.7 2000 54 34 5.8 21.0
LPC623454
 1200 1100 3.7 2200 54 34 6.2 22.5
LPC513455
 950 900 3.7 1800 55 34 5.1 18.5
LPC383466
 900 850 3.7 1700 66 34 3.8 17
LPA423466
 950 850 3.7 1700 66 34 4.2 19.5
LPC453466
 1050 950 3.7 1900 66 34 4.5 21
LPC483466
 1100 1000 3.7 2000 66 34 4.8 21.8
LPC503466
 1150 1100 3.7 2200 66 34 5.0 22.5
LPC553466
 1350 1250 3.7 2500 66 34 5.5 25
LPC603466
 1400 1300 3.7 2600 66 34 6.0 27.5
LPA703466
 1400 1300 3.7 2600 66 34 7.0 29
LPC703466
 1700 1600 3.7 3200 66 34 7.0 29
LPB803466
 1850 1750 3.7 3500 66 34 8.0 36.3
LPC803466
 1900 1800 3.7 3600 66 34 8.0 37
LPA423480
 1100 1000 3.7 2000 80 34 4.2 23
LPB523480
 1350 1250 3.7 2500 80 34 5.2 28
LPA603480
 1500 1400 3.7 2800 80 34 6.0 30
LPC603480
 1600 1550 3.7 3100 80 34 6.0 30.7
LPC703480
 2000 1900 3.7 3800 80 34 7.0 37.7
LPC753543
 1150 1100 3.7 2200 43 35 7.5 23
LPYS753543
 1150 1100 3.7 2200 43 35 7.5 23
LPC453548
 730 700 3.7 1400 48 35 4.5 14.5
LPC483548
 800 750 3.7 1500 48 35 4.8 15
LPC653548
 1050 1000 3.7 2000 48 35 6.5 21.2
LPA803548
 1300 1200 3.7 2400 48 35 8.0 26
LPB293560
 570 520 3.7 1040 60 35 2.9 11.5
LPA383560
 750 700 3.7 1400 60 35 3.8 15.2
LPC383560
 850 800 3.7 1600 60 35 3.8 16
LPA523560
 1050 950 3.7 1900 60 35 5.2 21.5
LPC523560
 1150 1050 3.7 2100 60 35 5.2 21
LPC603560
 1350 1250 3.7 2500 60 35 6.0 26.5
LPA853560
 1700 1600 3.7 3200 60 35 8.5 34
LPC303562
 630 600 3.7 1200 62 35 3.0 13.5
LPC403562
 900 850 3.7 1700 62 35 4.0 17.7
LPC503562
 1100 1050 3.7 2100 62 35 5.0 20
LPB8535135
 4100 3800 3.7 7600 135 35 8.5 83
LPA8835135
 4200 3800 3.7 7600 135 35 8.8 82
LPC473637
 580 550 3.7 1100 37 36 4.7 11.5
LPC483648
 800 750 3.7 1500 48 36 4.8 16
LPC683648
 1150 1100 3.7 2200 48 36 6.8 22.5
LPC723648
 1250 1200 3.7 2400 48 36 7.2 24
LPA803648
 1350 1200 3.7 2400 48 36 8.0 26
LPC803648
 1400 1300 3.7 2600 48 36 8.0 27
LPA853648
 1400 1300 3.7 2600 48 36 8.5 28
LPC853648
 1500 1400 3.7 2800 48 36 8.5 28
LPB883648
 1500 1400 3.7 2800 48 36 8.8 29
LPC603650
 1100 1000 3.7 2000 50 36 6.0 22
LPB683650
 1200 1100 3.7 2200 50 36 6.8 22
LPC753650
 1400 1300 3.7 2600 50 36 7.5 27

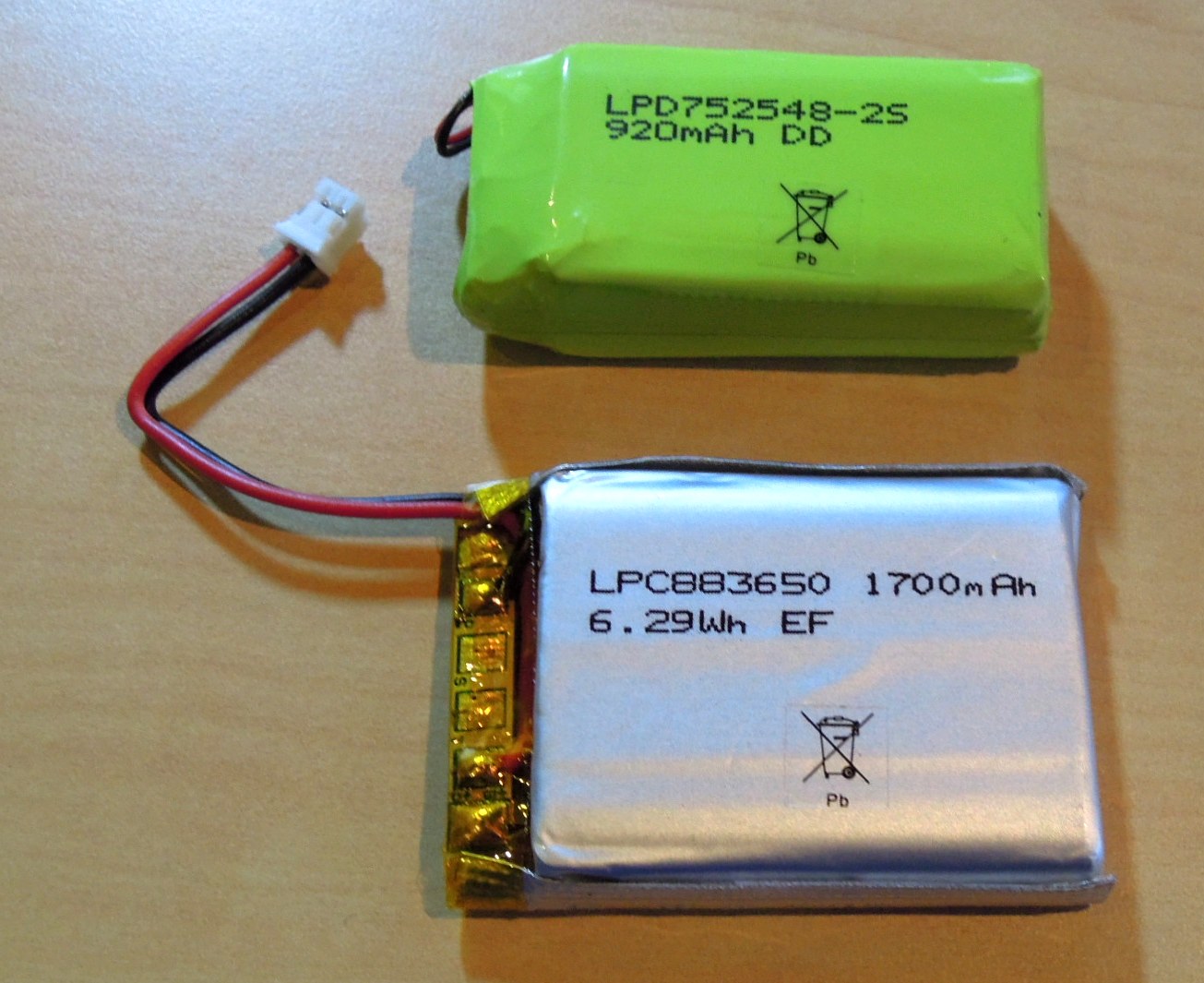

LPC883650
 1700 1650 3.7 3300 50 36 8.8 32.5
LPC953650
 1800 1700 3.7 3400 50 36 9.5 70
LPC883654
 1800 1700 3.7 3400 54 36 8.8 33.5
LPC373736
 420 400 3.7 800 36 37 3.7 8.5
LPD443740
 700 650 3.7 1300 40 37 4.4 12.5
LPC493743
 780 750 3.7 1500 43 37 4.9 14.5
LPC243759
 420 400 3.7 800 59 37 2.4 9.5
LPA483759
 1050 950 3.7 1900 59 37 4.8 21.5
LPB503759
 1150 1050 3.7 2100 59 37 5.0 22
LPC503759
 1250 1200 3.7 2400 59 37 5.0 23
LPC503759
 1250 1200 3.7 2400 59 37 5.0 23
LPD503759
 1350 1300 3.7 2600 59 37 5.0 24
LPB543759
 1250 1200 3.7 2400 59 37 5.4 24
LPC583759
 1350 1250 3.7 2500 59 37 5.8 26
LPD583759
 1480 1400 3.7 2800 59 37 5.8 27
LPC653759
 1500 1400 3.7 2800 59 37 6.5 29
LPC903759
 2200 2000 3.7 4000 59 37 9.0 40
LPC303870
 720 680 3.7 1360 70 38 3.0 14.5
LPB503870
 1350 1300 3.7 2600 70 38 5.0 27.5
LPC503870
 1500 1400 3.7 2800 70 38 5.0 28
LPC603870
 1800 1700 3.7 3400 70 38 6.0 35.5
LPC753870
 2100 2000 3.7 4000 70 38 7.5 39.5
LPC853870
 2300 2200 3.7 4400 70 38 8.5 43
LPD613938
 960 900 3.7 1800 38 39 6.1 17.5
LPD693938
 1100 1050 3.7 2100 38 39 7.2 21.5
LPC554050
 1100 1000 3.7 2000 50 40 5.5 21.5
LPC404052
 820 780 3.7 1560 52 40 4.0 16
LPC484052
 1050 950 3.7 1900 52 40 4.8 19.5
LPB4240160
 3000 2800 3.7 5600 160 40 4.2 59
LPC504131
 630 600 3.7 1200 31 41 5.0 12.5
LPC574152
 1250 1150 3.7 2300 52 41 5.7 24
LPC604152
 1350 1250 3.7 2500 52 41 6.0 25.5
LPC424234
 560 530 3.7 1060 34 42 4.2 11
LPC404261
 1000 950 3.7 1900 61 42 4.0 20
LPB544261
 1450 1350 3.7 2700 61 42 5.4 28.0
LPC564261
 1460 1380 3.7 2760 61 42 5.6 28.5
LPC604261
 1600 1500 3.7 3000 61 42 6.0 31.5
LPB754261
 1900 1800 3.7 3600 61 42 7.5 37
LPC754261
 2000 1900 3.7 3800 61 42 7.5 38.5
LPC804261
 2100 2000 3.7 4000 61 42 8.0 40
LPC604271
 2000 1800 3.7 3600 71 42 6.0 37.5
LPC634271
 2050 1950 3.7 3900 71 42 6.3 39.5
LPC404343
 730 700 3.7 1400 43 43 4.0 14
LPC304350
 560 540 3.7 1080 50 43 3.0 11.5
LPC434350
 1000 950 3.7 1900 50 43 4.3 19
LPC374368
 1050 1000 3.7 2000 68 43 3.7 22
LPC384368
 1150 1050 3.7 2100 68 43 3.8 23
LPC454368
 1350 1250 3.7 2500 68 43 4.5 26.8
LPC504368
 1600 1500 3.7 3000 68 43 5.0 30
LPC554368
 1700 1600 3.7 3200 68 43 5.5 33
LPC724368
 2200 2100 3.7 4200 68 43 7.2 43.5
LPC804368
 2500 2300 3.7 4600 68 43 8.0 46.5
LPA274374
 700 650 3.7 1300 74 43 2.7 15.5
LPA354374
 950 900 3.7 1800 74 43 3.5 20.5
LPC354374
 1000 950 3.7 1900 74 43 3.5 20
LPC404374
 1300 1200 3.7 2400 74 43 4.0 25
LPB504374
 1450 1400 3.7 2800 74 43 5.0 29.5
LPB604374
 2000 1900 3.7 3800 74 43 6.0 39.5
LPA704374
 2200 2000 3.7 4000 74 43 7.0 44
LPC854374
 3000 2800 3.7 5600 74 43 8.5 56
LPB504388
 2000 1900 3.7 3800 88 43 5.0 37.5
LPC554388
 2300 2200 3.7 4400 88 43 5.5 46.5
LPC654388
 2700 2500 3.7 5000 88 43 6.5 50.5
LPC784453
 1900 1800 3.7 3600 53 44 7.8 35
LPA7044125
 4200 4000 3.7 8000 125 44 7.0 80.5
LPC4545135
 2800 2700 3.7 5400 135 45 4.5 54
LPC5045135
 3200 3000 3.7 6000 135 45 5.0 64.5
LPA6045135
 3400 3200 3.7 6400 135 45 6.0 72
LPA6545135
 3800 3500 3.7 7000 135 45 6.5 82
LPA7545135
 4500 4000 3.7 8000 135 45 7.5 89
LPA8545135
 5300 5000 3.7 10000 135 45 8.5 105
LPA8845135
 5500 5000 3.7 10000 135 45 8.8 103.5
LPC384765
 1150 1050 3.7 2100 65 47 3.8 22.5
LPC504765
 1600 1500 3.7 3000 65 47 5.0 31.5
LPB544765
 1600 1500 3.7 3000 65 47 5.4 32
LPC604765
 1900 1800 3.7 3600 65 47 6.0 35.5
LPA654765
 1900 1850 3.7 3700 65 47 6.5 38.5
LPC654765
 2200 2100 3.7 4200 65 47 6.5 41.5
LPB704765
 2100 2000 3.7 4000 65 47 7.0 40.5
LPC704765
 2300 2200 3.7 4400 65 47 7.0 45
LPC744765
 2500 2300 3.7 4600 65 47 7.4 45
LPC804765
 2500 2400 3.7 4800 65 47 8.0 48
LPC844765
 2800 2600 3.7 5200 65 47 8.4 52.0
LPC864765
 2900 2700 3.7 5400 65 47 8.6 53
LPC884765
 3000 2800 3.7 5600 65 47 8.8 55
LPA3048166
 2400 2300 3.7 4600 166 48 3.0 50
LPA4048166
 3000 2900 3.7 5800 166 48 4.0 66
LPA5048166
 3500 3000 3.7 6000 166 48 5.0 77
LPA5348166
 3800 3500 3.7 7000 166 48 5.3 82
LPA5548166
 4300 4000 3.7 8000 166 48 5.5 87
LPA6048166
 4700 4400 3.7 8800 166 48 6.0 96
LPA6548166
 5300 5000 3.7 10000 166 48 6.5 106
LPA7548166
 6300 6000 3.7 12000 166 48 7.5 124.5
LPC404951
 1000 900 3.7 1800 51 49 4.0 19.5
LPC454951
 1100 1000 3.7 2000 51 49 4.5 23
LPC804951
 2200 2100 3.7 4200 51 49 8.0 40
LPC454965
 1500 1400 3.7 2800 65 49 4.5 29.5
LPC455055
 1300 1250 3.7 2500 55 50 4.5 24.5
LPC365074
 1350 1250 3.7 2500 74 50 3.6 27
LPC385074
 1400 1300 3.7 2600 74 50 3.8 27
LPA325085
 1250 1200 3.7 2400 85 50 3.2 27
LPC325085
 1350 1250 3.7 2500 85 50 3.2 27.5
LPC385085
 1600 1500 3.7 3000 85 50 3.8 32
LPC425085
 1850 1750 3.7 3500 85 50 4.2 38
LPC455085
 2200 2100 3.7 4200 85 50 4.5 40.5
LPB505085
 2200 2000 3.7 4000 85 50 5.0 44.5
LPC505085
 2300 2100 3.7 4200 85 50 5.0 45.0
LPC535085
 2400 2200 3.7 4400 85 50 5.3 45.5
LPA705085
 3000 2800 3.7 5600 85 50 7.0 60
LPC705085
 3100 2900 3.7 5800 85 50 7.0 60.5
LPC755085
 3300 3100 3.7 6200 85 50 7.5 64.5
LPA855085
 3600 3400 3.7 6800 85 50 8.5 71.5
LPC855085
 3800 3600 3.7 7200 85 50 8.5 73
LPC855088
 4100 3900 3.7 7800 88 50 8.5 75
LPC6550135
 4700 4400 3.7 8800 135 50 6.5 93.5
LPA6050145
 4300 4000 3.7 8000 145 50 6.0 86
LPC9551119
 6800 6500 3.7 13000 119 51 9.5 125
LPC455255
 1250 1200 3.7 2400 55 52 4.5 25.5
LPC525255
 1450 1350 3.7 2700 55 52 5.2 29
LPC555255
 1650 1600 3.7 3200 55 52 5.5 31.5
LPC385272
 1400 1300 3.7 2600 72 52 3.8 27.5
LPC555272
 2100 2000 3.7 4000 72 52 5.5 42.5
LPC705272
 2950 2750 3.7 5500 72 52 7.0 56
LPC485367
 1700 1600 3.7 3200 67 53 4.8 33.5
LPC505367
 1750 1850 3.7 3700 67 53 5.0 36
LPD285385
 1300 1250 3.7 2500 85 53 2.8 26
LPA325385
 1400 1300 3.7 2600 85 53 3.2 29.5
LPC355385
 1550 1500 3.7 3000 85 53 3.5 32.5
LPA385385
 1600 1500 3.7 3000 85 53 3.8 34
LPA385385
 1600 1500 3.7 3000 85 53 3.8 34
LPC435385
 2050 1950 3.7 3900 85 53 4.3 40
LPC485385
 2250 2100 3.7 4200 85 53 4.8 45
LPC555385
 2750 2600 3.7 5200 85 53 5.5 52.5
LPB705385
 3500 3200 3.7 6400 85 53 7.0 64
LPC525464
 1950 1850 3.7 3700 64 54 5.2 38.5
LPC705464
 2500 2300 3.7 4600 64 54 7.0 49
LPC805464
 3000 2800 3.7 5600 64 54 8.0 58.5
LPC305560
 820 780 3.7 1560 60 55 3.0 17.5
LPC355560
 1200 1150 3.7 2300 60 55 3.5 23
LPC455560
 1500 1400 3.7 2800 60 55 4.5 30
LPC815560
 2700 2500 3.7 5000 60 55 8.1 51.5
LPC575576
 2500 2400 3.7 4800 76 55 5.7 47.5
LPA305590
 1200 1100 3.7 2200 90 55 3.0 26
LPC305590
 1350 1300 3.7 2600 90 55 3.0 27.5
LPA365590
 1700 1600 3.7 3200 90 55 3.6 36
LPC385590
 1900 1800 3.7 3600 90 55 3.8 38
LPC405590
 2100 2000 3.7 4000 90 55 4.0 44
LPC455590
 2300 2100 3.7 4200 90 55 4.5 47
LPC505590
 2700 2600 3.7 5200 90 55 5.0 52.5
LPD505590
 2800 2600 3.7 5200 90 55 5.0 52
LPC545590
 2900 2700 3.7 5400 90 55 5.4 57

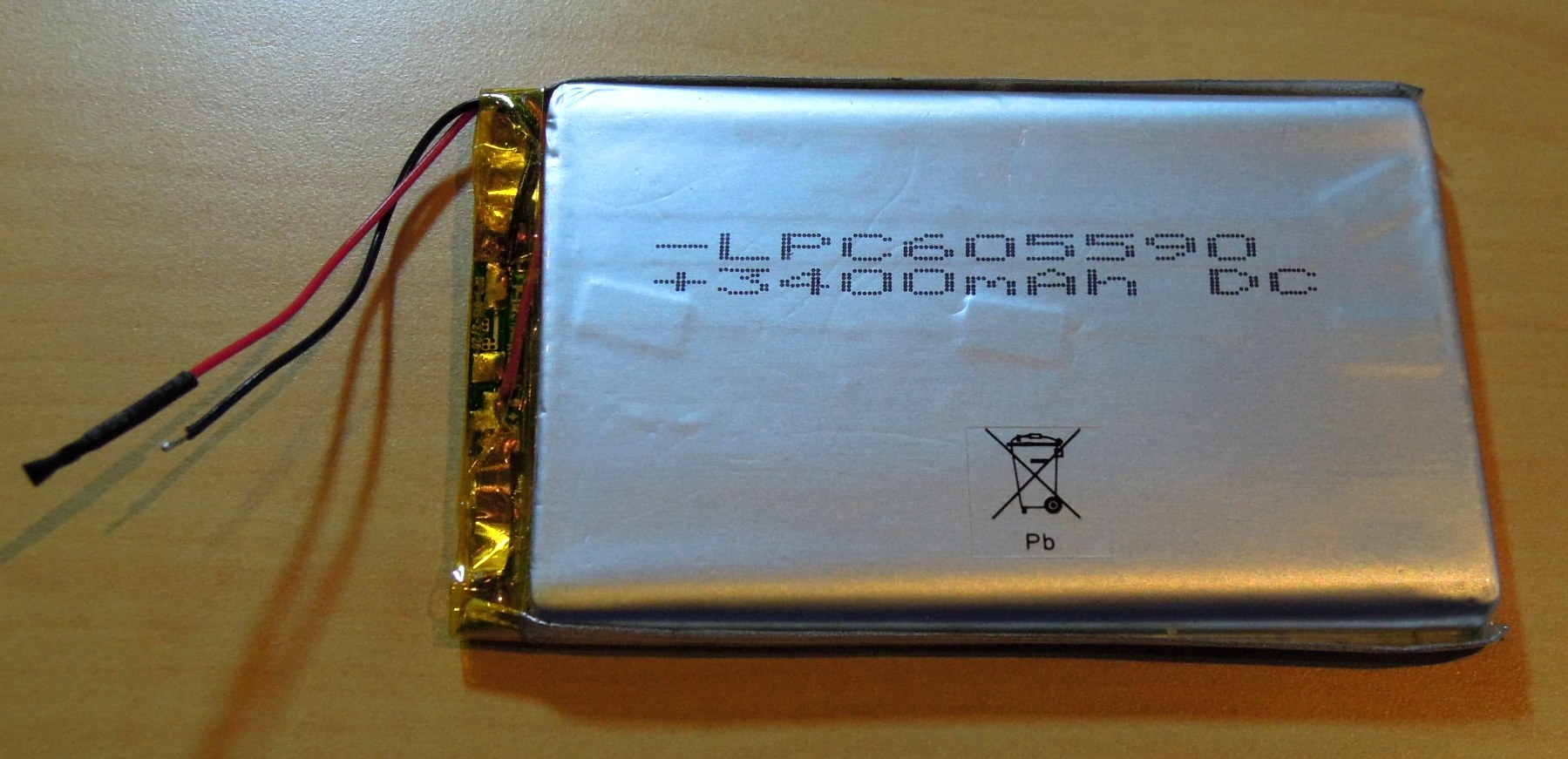

LPC605590
 3400 3200 3.7 6400 90 55 6.0 62
LPB505597
 2900 2700 3.7 5400 97 55 5.0 57
LPC555597
 3000 2850 3.7 5700 97 55 5.5 60
LPC745680
 3800 3600 3.7 7200 80 56 7.4 68
LPC505776
 2100 2000 3.7 4000 76 57 5.0 42.5
LPB605776
 2500 2400 3.7 4800 76 57 6.0 51
LPC675776
 3000 2000 3.7 4000 76 57 6.7 65
LPA705776
 3000 2800 3.7 5600 76 57 7.0 60
LPC5058110
 3500 3300 3.7 6600 110 58 5.0 66.5
LPC385967
 1550 1450 3.7 2900 67 59 3.8 31.5
LPC455967
 1850 1750 3.7 3500 67 59 4.5 35.5
LPC505967
 2000 1900 3.7 3800 67 59 5.0 40
LPA3259135
 2100 2000 3.7 4000 135 59 3.2 48
LPA6559135
 5300 5000 3.7 10000 135 59 6.5 108.5
LPC886047
 2650 2450 3.7 4900 47 60 8.8 49.5
LPC506085
 2800 2650 3.7 5300 85 60 5.0 55.5
LPC326167
 1300 1200 3.7 2400 67 61 3.2 26
LPC656194
 4000 3800 3.7 7600 94 61 6.5 78.5
LPC686367
 3100 2900 3.7 5800 67 63 6.8 58
LPC4365100
 2800 2600 3.7 5200 100 65 4.3 57
LPC706656
 2700 2600 3.7 5200 56 66 7.0 52
LPC806656
 3000 2800 3.7 5600 56 66 8.0 57
LPC556877
 3300 3100 3.7 6200 77 68 5.5 60.5
LPA4068114
 3200 3000 3.7 6000 114 68 4.0 65
LPA387062
 1500 1400 3.7 2800 62 70 3.8 32
LPA507062
 2100 2000 3.7 4000 62 70 5.0 44.5
LPC607062
 2500 2400 3.7 4800 62 70 6.0 80
LPC807062
 3700 3500 3.7 7000 62 70 8.0 68
LPC857062
 3800 3600 3.7 7200 62 70 8.5 71.5
LPC3296135
 3400 3200 3.7 6400 135 96 3.2 48
LPA4596135
 5300 5000 3.7 10000 135 96 4.5 114
LPA50100100
 4800 4500 3.7 9000 100 100 5.0 100
LPA55100100
 5600 5300 3.7 10600 100 100 5.5 115
LPC61100100
 6800 6400 3.7 12800 100 100 6.1 124
LPA35103122
 3800 3500 3.7 7000 122 103 3.5 86
LPA38103122
 4200 4000 3.7 8000 122 103 3.8 86.5
LPA45103122
 5400 5000 3.7 10000 122 103 4.5 113.5
LPA50103122
 6000 5800 3.7 11600 122 103 5.0 126
LPA55103122
 6600 6300 3.7 12600 122 103 5.5 134
LPA70103122
 8700 8200 3.7 16400 122 103 7.0 173
LPC605464
 2300 2100 64 4200 54 6.0 43.5


Série LPF (nombre de cycles augmenté)
Référence CiblénergieNominal CapacityNominal VoltageMax Discharge CurrentDimensions (mm)ThicknessWeight
MinTypicalVlengthWidthApprox. g

 (mAh) (mAh)   (Ampère) (±1) (±0.5) (±0.3)
LPF883090
 2400 2300 3.7 6,9 90 30 8.8 45
LPF803248
 1200 1100 3.7 3,3 48 32 8.0 23
LPF703445
 680 650 3.7 1,95 45 34 7.0 18.5
LPF803448
 1250 1200 3.7 3,6 48 34 8.0 25
LPF833450
 1300 1250 3.7 3,75 50 34 8.3 26
LPF683562
 1450 1350 3.7 4,05 62 35 6.8 28
LPF654261
 1600 1500 3.7 4,5 61 42 6.5 31
LPF725464
 2300 2150 3.7 6,45 64 54 7.2 48
LPF856656
 2800 2600 3.7 7,8 56 66 8.5 58
LPF6848166
 5200 5000 3.7 15 166 48 6.8 115
LPF4067220
 5200 5000 3.7 15 220 67 4.0 125
LPF5067220
 5000 4800 3.7 14,4 220 67 5.0 128
LPF6052220
 5500 5000 3.7 15 220 52 6 125
LPF5567220
 7200 6800 3.7 20,4 220 67 5.5 165
LPF6567220
 7200 6600 3.7 19,8 220 67 6.5 163
LPF7767220
 10500 9700 3.7 29,1 220 67 7.7 230
LPF8067220
 8500 8000 3.7 24 220 67 8.0 212
LPF8867220
 10500 9700 3.7 29,1 220 67 8.8 258

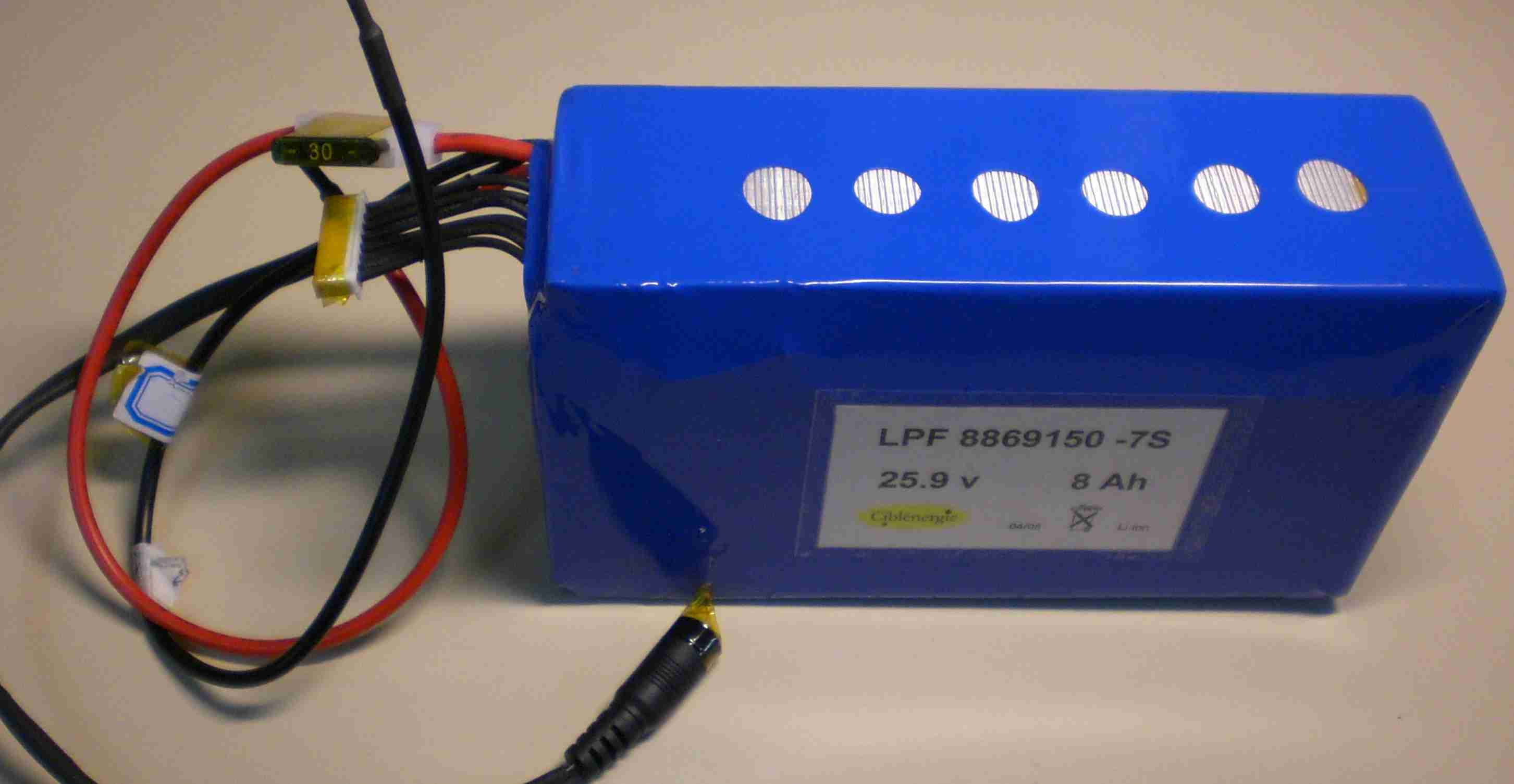

LPF8869150
 8000 7500 3.7 16 150 69 8.8 176
LPF88691503S2P
 16000 15000 11.1 30 180 71 55 1200
LPF88691503S4P
 32000 30000 11.1 30 180 71 110 2320
LPF1587062
 6200 6000 3.7 18 62 70 15.8 130


Cellule Lithium Polymer fort courant
Référence CiblénergieNominal CapacityNominal VoltageMax Discharge CurrentDimensions (mm)ThicknessWeight
MinTypicalVlengthWidthApprox. g

 (mAh) (mAh)   (Ampère) (±1) (±0.5) (±0.3)
LPH501028
 65 60 3.7 0,42 28 10 5.0 2
LPH201124
 25 20 3.7 0,14 24 11 2.0 1.0
LPH221124
 24 20 3.7 0,14 24 11 2.2 1.0
LPH251215
 10 8 3.7 0,06 15 12 2.5 0.6
LPH381215
 22 20 3.7 0,14 15 12 3.8 0.85
LPH501417
 48 45 3.7 0,32 17 14 5.0 1.5
LPH601428
 130 120 3.7 0,84 28 14 6.0 3.8
LPH452025
 130 120 3.7 0,84 25 20 4.5 3.5
LPH302030
 100 90 3.7 0,63 30 20 3.0 3.0
LPH452030
 160 150 3.7 1,05 30 20 4.5 4.5
LPH5820122
 1100 1050 3.7 7,35 122 20 5.8 27
LPH602460
 650 600 3.7 4,2 60 24 6.0 15.2
LPH602567
 800 750 3.7 5,25 67 25 6.0 19.3
LPH353048
 270 250 3.7 1,75 48 30 3.5 7
LPH403048
 400 380 3.7 2,66 48 30 4.0 10
LPH453048
 480 450 3.7 3,15 48 30 4.5 12.5
LPH503048
 550 500 3.7 3,5 48 30 5.0 13.7
LPH703048
 800 700 3.7 4,9 48 30 7.0 19.0
LPH803080
 1550 1450 3.7 10,15 80 30 8.0 37.5
LPH503090
 1100 1000 3.7 7 90 30 5.0 28.0
LPH703090
 1550 1450 3.7 10,15 90 30 7.0 38.0
LPH803090
 1800 1700 3.7 11,9 90 30 8.0 43.5
LPH883090
 2000 1900 3.7 13,3 90 30 8.8 45.5
LPH553448
 700 650 3.7 4,55 48 34 5.5 17
LPH353450
 480 430 3.7 3,01 50 34 3.5 11.5
LPH503450
 730 670 3.7 4,69 50 34 5.0 16.5
LPH603450
 880 800 3.7 5,6 50 34 6.0 19.5
LPH703466
 1350 1200 3.7 8,4 66 34 7.0 31.5
LPH703496
 2100 1900 3.7 13,3 96 34 7.0 46.5
LPH803454
 1150 1050 3.7 7,35 54 34 8.0 27.5
LPH503460
 800 750 3.7 5,25 60 34 5.0 21
LPH703466
 1300 1250 3.7 8,75 66 34 7.0 31.5
LPH953466
 1850 1700 3.7 11,9 66 34 9.5 43
LPH403496
 1100 1000 3.7 7 96 34 4.0 26
LPH503496
 1350 1300 3.7 9,1 96 34 5.0 34
LPH603496
 1500 1400 3.7 9,8 96 34 6.0 39
LPH653496
 1800 1700 3.7 11,9 96 34 6.5 42.5
LPH753496
 2000 1900 3.7 13,3 96 34 7.5 47.5
LPH803496
 2200 2000 3.7 14 96 34 8.0 52
LPH653560
 1000 950 3.7 6,65 60 35 6.5 26
LPH803560
 1250 1150 3.7 8,05 60 35 8.0 33
LPH883560
 1500 1400 3.7 9,8 60 35 8.8 35.5
LPH3335135
 1050 1000 3.7 7 135 35 3.3 29.5
LPH6035135
 2200 2000 3.7 14 135 35 6.0 57
LPH7035135
 2500 2300 3.7 16,1 135 35 7.0 63
LPH503759
 850 800 3.7 5,6 59 37 5.0 22
LPH753770
 1600 1500 3.7 10,5 70 37 7.5 38
LPH703974
 1850 1700 3.7 11,9 74 39 7.0 43.5
LPH454374
 1050 1000 3.7 7 74 43 4.5 28
LPH484374
 1150 1050 3.7 7,35 74 43 4.8 29
LPH604374
 1600 1500 3.7 10,5 74 43 6.0 39.5
LPH804374
 2200 2000 3.7 14 74 43 8.0 54
LPH5644125
 2600 2400 3.7 16,8 125 44 5.6 64
LPH455085
 1500 1400 3.7 9,8 85 50 4.5 38.5
LPH555385
 2100 2000 3.7 14 85 53 5.5 51.5
LPH525590
 2100 2000 3.7 14 90 55 5.2 51.5
LPH555590
 2300 2100 3.7 14,7 90 55 5.5 54.5




LPI452025
 120 110 3.7 1,1 25 20 4.5 3.5
LPI353048
 330 300 3.7 3 48 30 3.5 9
LPI603048
 620 580 3.7 5,8 48 30 6.0 16.5
LPI703048
 720 680 3.7 6,8 48 30 7.0 18.5
LPI703090
 1400 1300 3.7 13 90 30 7.0 35.5
LPI503460
 800 740 3.7 7,4 60 34 5.0 21.5
LPI703466
 1250 1200 3.7 12 66 34 7.0 31
LPI703480
 1500 1400 3.7 14 80 34 7.0 38
LPI603496
 1500 1400 3.7 14 96 34 6.0 38.5
LPI703496
 1800 1700 3.7 17 96 34 7.0 46
LPI753496
 1900 1800 3.7 18 96 34 7.5 48.5
LPI853496
 2200 2000 3.7 20 96 34 8.5 52.5
LPI803560
 1250 1150 3.7 11,5 60 35 8.0 33.5
LPI423560
 600 550 3.7 5,5 60 35 4.2 17
LPI853560
 1300 1200 3.7 12 60 35 8.5 33
LPI5535135
 1900 1800 3.7 18 135 35 5.5 52.5
LPI6035135
 2100 2000 3.7 20 135 35 6.0 55.9
LPJ6535135
 2200 2000 3.7 30 135 35 6.5 62
LPI7535135
 3200 3000 3.7 30 135 35 7.5 76
LPI854374
 2100 2000 3.7 20 74 43 8.5 51.5
LPI5644125
 2350 2200 3.7 22 125 44 5.6 62
LPI6044125
 2600 2400 3.7 24 125 44 6.0 66.5




LPJ453048
 430 400 3.7 6 48 30 4.5 12
LPJ553048
 530 500 3.7 7,5 48 30 5.5 13.8
LPJ753090
 1500 1400 3.7 21 90 30 7.5 40
LPJ553460
 800 740 3.7 11,1 60 34 5.5 24
LPJ583460
 800 750 3.7 11,25 60 34 5.8 24
LPJ583460
 800 700 3.7 10,5 60 34 5.8 24
LPJ753466
 1200 1100 3.7 16,5 66 34 7.5 32.5
LPJ753480
 1500 1400 3.7 21 80 34 7.5 40.5
LPJ753480
 1500 1400 3.7 21 80 34 7.5 40.5
LPJ903480
 1800 1700 3.7 25,5 80 34 9.0 49.5
LPJ683496
 1500 1400 3.7 21 96 34 6.8 44
LPJ683496
 1500 1400 3.7 21 96 34 6.8 44
LPJ753496
 1800 1700 3.7 25,5 96 34 7.5 48
LPJ753496
 1800 1700 3.7 25,5 96 34 7.5 48
LPJ853496
 2100 2000 3.7 30 96 34 8.5 58.5
LPJ853496
 2100 2000 3.7 30 96 34 8.5 58.5
LPJ453560
 560 530 3.7 7,95 60 35 4.5 17.7
LPJ683560
 1000 950 3.7 14,25 60 35 6.8 27.5
LPJ753560
 1100 1000 3.7 15 60 35 7.5 30
LPJ853560
 1250 1150 3.7 17,25 60 35 8.5 35
LPJ853560
 1250 1150 3.7 17,25 60 35 8.5 35
LPJ6535135
 2200 2000 3.7 30 135 35 6.5 62.0
LPJ7035135
 2500 2300 3.7 34,5 135 35 7.0 67.5
LPJ7035135
 2500 2300 3.7 34,5 135 35 7.0 67.5
LPJ454374
 900 850 3.7 12,75 74 43 4.5 28
LPJ684374
 1550 1450 3.7 21,75 74 43 6.8 42
LPJ854374
 2100 2000 3.7 30 74 43 8.5 55
LPJ854374
 2100 2000 3.7 30 74 43 8.5 55




LPK583460
 800 750 3.7 15 60 34 5.8 24
LPK683496
 1500 1400 3.7 28 80 34 6.8 40.5
LPK853496
 2100 2000 3.7 40 96 34 8.5 64
LPK8544125
 3200 3000 3.7 60 125 44 8.5 98
LPK11044132
 4800 4300 3.7 86 132 44 11.0 140
LPK605590
 2100 2000 3.7 40 90 55 6.0 67


Série LFB (Traction et nombre de cycles)
Référence CiblénergieNominal CapacityNominal VoltageMax Discharge CurrentDimensions (mm)ThicknessWeight
MinTypicalVlengthWidthApprox. g

 (mAh) (mAh)   (Ampère) (±1) (±0.5) (±0.3)
LFB26650HE
 3000 2950 3.2 6 67 26 26 95
LFB26650HE8S5P
 15000 14750 24 30 150 260 85 4200
LFB26650HE4S6P
 18000 17800 12.8 20 180 166 76 2600
LFB752567
 700 800 3.2 5,6 67 25 8.0 23
LFB883496
 1700 1800 3.2 12,6 96 34 8.8 54
LFB803449
 1800 1900 3.2 13,3 49 34 8.0 24
LFB7067226
 4800 5000 3.2 35 226 67 7.0 168
LFB7867220
 6000 6500 3.2 45,5 220 67 7.8 195

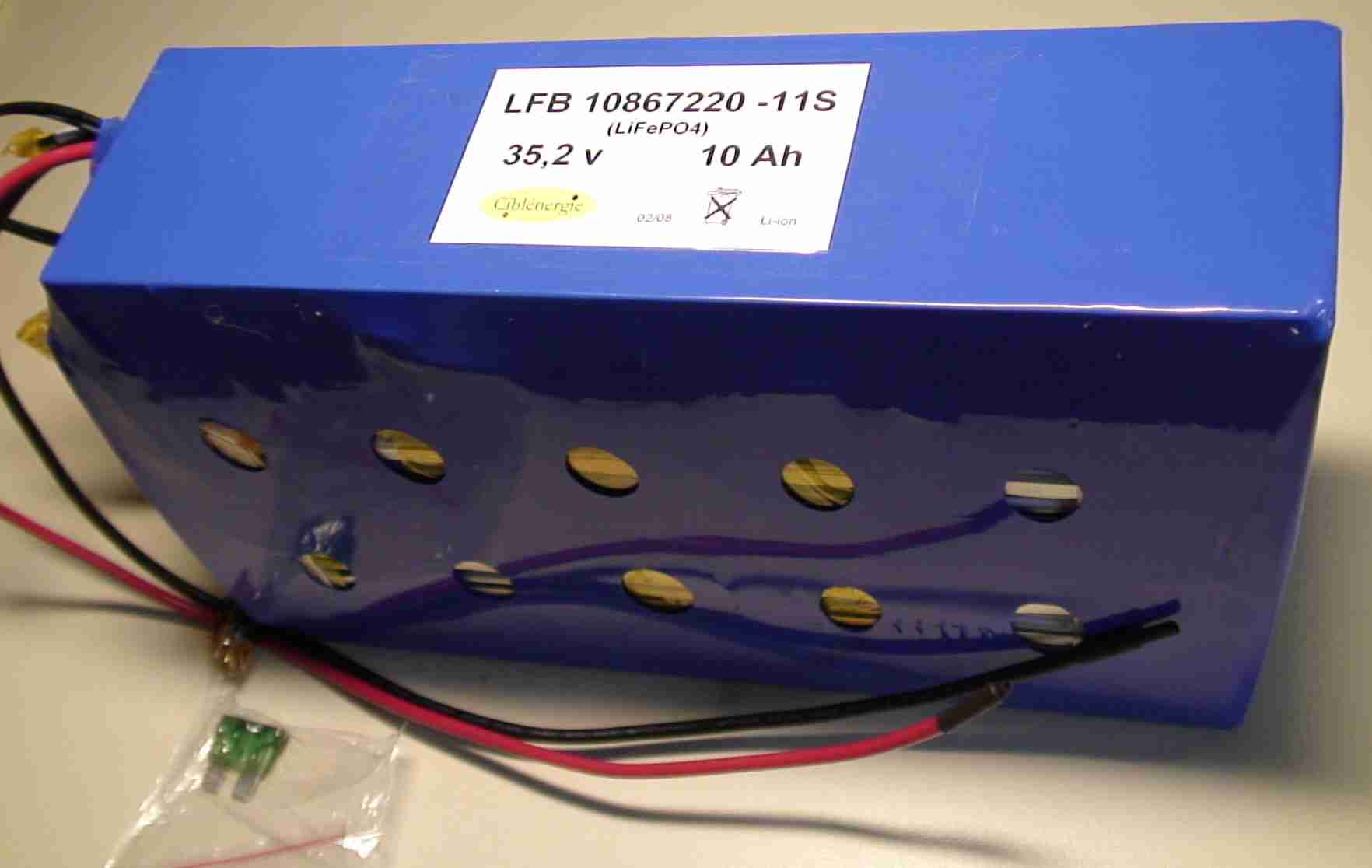

LFB10867220
 9500 10000 3.2 70 220 67 10.8 270
